Bianco Pumpz

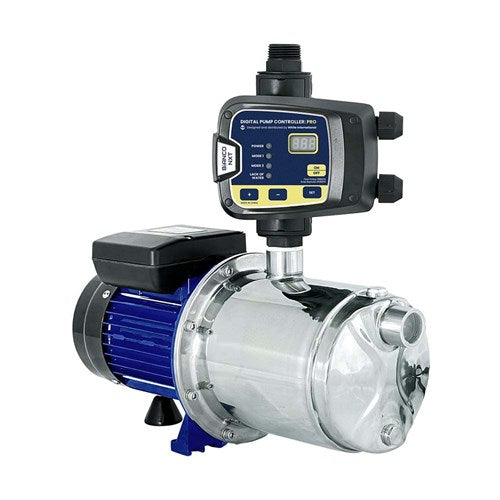

Bianco BIA-MULTI4-50NXTP
Bianco BIA-MULTI4-50NXTP
Technical Specifications
| Brand | Bianco nXt |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | Pre-set 2.2 bar. User Adjustable. |
| Approval | Drinking Water Approval |
| Amps | 4.9 |
| Flow Range Category | a. 0 - 99 L/min |
| Float | No |
| Hp | 1 |
| Kilo Watts | 0.75 |
| Max Flow (L/min) | 98 |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 57.5 |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Volts | 240 |
| Watts | 750 |
Pack Weight (KG): 14.00

BIA-MULTI 4-50NXTP Specifications
OUTPUT POWER (KW) 0.75kW P2
MAX. HEAD [M] 57.5M
MAX. FLOW L/MIN 98 l/min
MAX PRESSURE Pump: 8 bar Controller 10 bar
LIQUID TEMPERATURE 2 - 40 deg C
MOTOR Asynchronous TEFC
MOTOR INSULATION F Class insulation
MOTOR PROTECTION In-built thermal overload
PROTECTION CLASS IP45
PRESSURE TANK 0.3 litre controller volume
3, 8 or 18 litre recommended
RATED VOLTAGE 220 - 240V 1Ph 50 Hz
RATED CURRENT 4.9A
CAPACITOR 20uF 450V
POWER CABLE 1.2m long 10 amp rated H05 flex
10 amp 3 pin plug
AUTOMATIC OPERATION Yes - Dual mode NXT PRO
PUMP BODY Stainless steel
INTERNALS Composite impeller / diffusers
MECHANICAL SEAL Silicon Carbide/Carbon
PACKAGE DIMENSION 460 x 230 x 420
GROSS WEIGHT (KG) 14kg
Product Features
The pump is a self-priming surface mounted pressure system pump supplied with plug and play leads (IEC type). The self-priming ability provides excellent suction capacity of up to 9m. Used especially for supplying water to domestic installations.
The pump is characterised by:
- Automatic electronic pump control fitted and wired with plug and play leads so a licensed electrician is not required during installation.
- Includes fully electronic pump controller for automatic pump starting, stopping and restart after power loss and water loss.
- Run dry protection to prevent pump damage
- Automatic electronic control has in-built check valve to prevent water backflow through the pump.
- 2.2bar pump cut in for greater versatility.
- Corrosion resistant pump body, diffuser and impeller to ensure pump durability
- High quality mechanical shaft seal and high quality bearings
- 240V single phase TEFC motor with in-built auto reset thermal overload to prevent the pump from overheating.
- Pre-wired, dual mode, auto-restart pump controller
- Digital display
- Dry-run, frequent start, maximum run time protection
- Built from high quality materials
- Self priming operation
Applications
• Household water supply
• Pressure boosting
• Light commercial applications
• Water transfer
• Washing systems
• Light Irrigation
