Bianco Pumpz

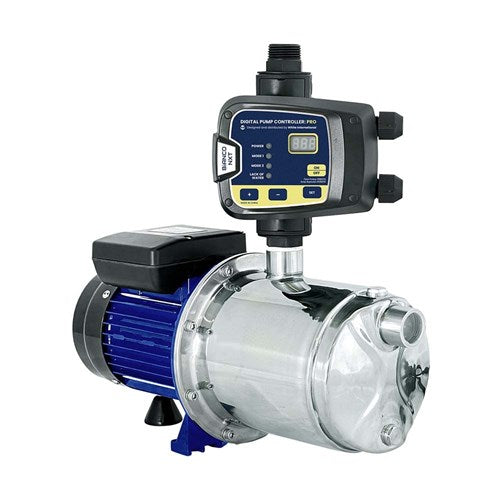

Bianco BIA-MULTI5-80NXTP
Bianco BIA-MULTI5-80NXTP
Technical Specifications
| Brand | Bianco nXt |
| Product Type | Pressure System |
| Suitable For | Clean Water |
| Bar | Pre-set 2.2 bar. User Adjustable. |
| Approval | Drinking Water Approval |
| Amps | 5.8 |
| Flow Range Category | b. 100 - 199 L/min |
| Float | No |
| Hp | 1.34 |
| Kilo Watts | 1.0 |
| Max Flow (L/min) | 120 |
| Head Range Category | b. 40 - 59 m |
| Max Head (m) | 59 |
| Port Size Inlet | 1" BSPF inlet |
| Port Size Outlet | 1" BSPM outlet |
| Powered | Electric |
| Volts | 240 |
| Watts | 1000 |
Pack Weight (KG): 16.00
Applications
• Household water supply
• Pressure boosting
• Light commercial applications
• Water transfer
• Washing systems
• Light Irrigation
BIA-MULTI 5-80NXTP Specifications
OUTPUT POWER (KW) 1.0kW P2
MAX. HEAD [M] 59M
MAX. FLOW L/MIN 120 l/min
MAX PRESSURE Pump: 8 bar Controller 10 bar
LIQUID TEMPERATURE 2 - 40 deg C
MOTOR Asynchronous TEFC
MOTOR INSULATION F Class insulation
MOTOR PROTECTION In-built thermal overload
PROTECTION CLASS IP45
PRESSURE TANK 0.3 litre controller volume
3, 8 or 18 litre recommended
RATED VOLTAGE 220 - 240V 1Ph 50 Hz
RATED CURRENT 5.8A
CAPACITOR 25uF 450V
POWER CABLE 1.2m long 10 amp rated H05 flex
10 amp 3 pin plug
AUTOMATIC OPERATION Yes - Dual mode NXT PRO
PUMP BODY Stainless steel
INTERNALS Composite impeller / diffusers
MECHANICAL SEAL Silicon Carbide/Carbon
PACKAGE DIMENSION 460 x 230 x 420
GROSS WEIGHT (KG) 16kg
Product Features
The BiANCO NXT MULTI-SP is the perfect solution whether
you need to boost water pressure.
Compact, quiet and efficient, the MULTI-SP is a ‘self–
priming’ booster pump, able to draw water up into the pump
from shallow wells or submerged tanks.
Supplied prewired with the award-winning BiANCO NXT
PRO controller, the user can choose between pump
operating modes making MULTI-SP the perfect solution
for for domestic household supply, water transfer or
light irrigation / horticultural use in rural and semi-rural
applications.
• Pre-wired, dual mode, auto-restart pump controller
• Digital display
• Dry-run, frequent start, maximum run time protection
• Built from high quality materials
• Self priming operation
